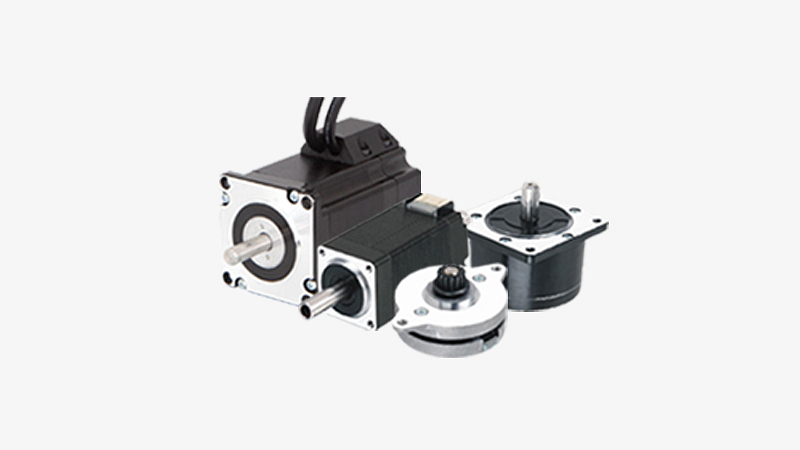

How To Cool Stepper Motors

You know, those critical components in CNC machines, 3D printers, and even in your everyday gadgets?

February 22, 2024

They're super important, but here's the thing: they get really hot. And if we don't manage that heat? It's trouble for both the motors and your machines. That's why we're diving into the world of cooling stepper motors.

Why Do Stepper Motors Heat Up?

Here's the deal: when electricity flows through the motor, it generates heat. It's a natural byproduct of the motor doing its job. But too much heat? That's a recipe for reduced efficiency and a shorter lifespan for your motor. We're talking about potential malfunctions and, in worst-case scenarios, complete motor failure.

How To Cool Stepper Motors

The Basics Of Stepper Motor Cooling

So, we've got the basics down, but let's turn up the cool factor. Before we dive into the high-tech stuff, let's talk about the unsung heroes of motor cooling: passive techniques. Simple, effective, and often underrated, these methods are the cornerstone of keeping your stepper motors chill.

Passive Cooling Techniques

Let's start with the basics: passive cooling. Think of it as the first line of defense against heat. Heat sinks are your go-to here. They're like the radiator in your car, pulling heat away from the motor.

But it's not just about slapping on a heat sink; placement and size matter. And don't forget about good old-fashioned ventilation. Keeping the surrounding air cool makes a huge difference.

Active Cooling Solutions

Sometimes, passive cooling just doesn't cut it. That's where active cooling comes into play. Fans are your best friends here. They're like a breath of fresh air for your motor, literally. But choosing the right fan and installing it properly? That's key. For heavy-duty applications, consider liquid cooling systems. They're like giving your motor a personal air conditioner.

Advanced Cooling Strategies For Stepper Motors

Now, let's shift gears and delve into the more advanced realm of cooling. We're not just talking fans and heat sinks anymore; it's about getting smarter with materials and design.

Material and Design Considerations

Materials matter. Some metals dissipate heat better than others. So, choosing the right material for your motor and its components can be a game-changer. And it's not just about materials; the design plays a huge role too. Think about designs that promote airflow – they can make a significant impact on heat management.

Smart Cooling Systems

Welcome to the future: smart cooling systems. We're talking sensors, automated controls, systems that adapt to the motor's workload. It's like having a smart thermostat for your motor.

These systems monitor the temperature in real-time and adjust cooling as needed. It's efficient, effective, and frankly, pretty cool.

How To Cool Stepper Motors

Practical Tips And Best Practices

When it comes to keeping your stepper motors cool, the devil is in the details. It's not just about choosing the right cooling system; it's about installing and maintaining it correctly to ensure optimal performance.

Installation Tips for Effective Cooling

First things first: installation is key. When setting up your cooling system, whether it’s a simple fan or an advanced liquid cooling setup, follow the manufacturer's instructions in the letter. Ensure that everything is aligned correctly, securely fitted, and set to the right specifications.

Even the best cooling system can fail if it’s not installed properly. Remember, a little extra time spent during installation can save you a ton of time down the road.

Maintenance and Troubleshooting

Just like any other part of your machinery, your cooling system needs regular maintenance to function at its best. This means regularly cleaning any dust or debris that might block airflow, checking for wear and tear, and ensuring that all components are in good working order.

Stay vigilant for any signs of overheating or unusual noises – these could be early warning signs of a problem. If you do encounter an issue, start by checking the basics: is there proper airflow? Are all components working as they should?


In conclusion, cooling stepper motors is not just a technical necessity; it's a vital aspect of ensuring the longevity and peak performance of your machinery. From understanding the fundamentals of stepper motors to exploring advanced cooling strategies, we've covered it all.

By implementing passive and active cooling techniques, considering material and design factors, and even exploring smart cooling systems, you have a toolkit at your disposal to keep those motors running smoothly.
