Smooth Motor's 10mm Permanent Magnet stepper motor actuator are the smallest in the world, making them a breakthrough solution for space-constrained applications. Their compact size and precision make them ideal for lock systems, providing reliable and accurate motion control for secure access and locking mechanisms. Moreover, these stepper linear actuator find extensive use in medical pumps and mini pump applications, offering efficient and consistent fluid handling for diagnostics and treatments. Their small form factor and high performance make them a game-changer in various industries seeking precision and reliability in confined spaces.
>> DATA SHEET
>> FAQs in VIDEO FORMAT
>> CUSTOMIZATION SUPPORT

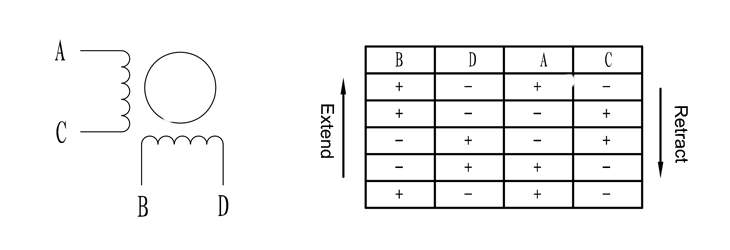

| Mechanical / Electric Specification | Wiring Diagram and Stepping Sequence | |||
| Step Angle | 18° | Voltage | 5V |
|
| Phases | 2/2 Bipolar | Current | 200mA | |
| Leads | 0.4mm | Resistance | 22Ω | |
| Rseolution | 20μm | Inductance | N/A | |
| Effective travel | 8mm | Thrust | 0.98N | |
| Working Temperature | 0-50℃ | Insulation Resistance | 30MΩmin | |
| Storage Temperatur | -10-60℃ | Dielectrical Strength | 500V DC | |
| Service Life | 500K Times Round-trip | |||
| Weight | About 6g | |||
Chopper Driver Full Step/Sec
* Customization is available, Please contact us if you can't find what you are looking for.
The Smooth Stepper Motor are ideal for applications requiring a combination of precise positioning, rapid motion and long life.
