Nema 11 Hybrid Linear Stepper Motors from Smooth Motor are widely used in medical devices like biochemical analyzers, offering precise fluid handling and accurate reagent dispensing. The stainless-steel components and expert surface treatments contribute to consistent and reliable linear motion, vital for precise biochemical analysis.
In automated optical inspection (AOI) systems, Nema 11 motors are employed for precise positioning of inspection cameras. The advanced surface treatments and stainless-steel components ensure smooth and reliable motion control, enhancing the efficiency and accuracy of AOI processes.
>> DATA SHEET
>> NUT OPTIONS
>> LEAD SCREW OPTIONS
>> ENDING MACHINING OPTIONS
>> FAQS in VIDEO FORMAT
>> CUSTOMIZATION SUPPORT

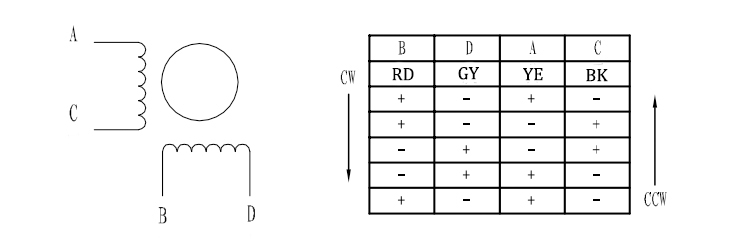

| General Specification | Wiring Diagram and Stepping Sequence | |
| Step Angle | 1.8° ±5% |
|
| Working Temperature | 80℃ max | |
| Environmental Temperature | -20℃~+50℃ | |
| Insulation Class | B | |
| Dielectric Voltage Withstand | AC 500V 1 Min | |
| Insulations Resistance | 100MΩ Min 500V DC | |
| IP Rate | IP40 | |
▶ Standard Lead Screw
| OD mm | Φ4.76（ACME） | Φ5（Tr） | |||||
| Leads mm | 0.635 | 1.27 | 2.54 | 5.08 | 1 | 2 | 4 |
| Code | B | E | J | P | C | H | M |
▶ Handle or Encoder is available
▶ Specified Connectors and Wires are available
| Model | Voltage V | Current mA | Leads mm | Rseolution mm | Thrust @100pps | Resistance Ω | Inductance mH | Length mm |
| 11HY105-100N-PB | 5 | 0.42 | 0.635 | 0.003175 | 8.2Kg | 11.9 | 5 | 33.5 |
| 11HY105-100N-PE | 1.27 | 0.00635 | 6.3Kg | |||||
| 11HY105-100N-PJ | 2.54 | 0.0127 | 3.0Kg | |||||
| 11HY105-100N-PM | 4 | 0.02 | 1.6Kg | |||||
| 11HY302-100N-PB | 5 | 0.75 | 0.635 | 0.003175 | 12.1Kg | 6.7 | 3 | 45 |
| 11HY302-100N-PE | 1.27 | 0.00635 | 9.2Kg | |||||
| 11HY302-100N-PJ | 2.54 | 0.0127 | 4.2Kg | |||||
| 11HY302-100N-PM | 4 | 0.02 | 2.2Kg | |||||
| 11HY401-100N-PB | 6.2 | 0.67 | 0.635 | 0.003175 | 14.6Kg | 9.2 | 4.2 | 51 |
| 11HY401-100N-PE | 1.27 | 0.00635 | 11.1Kg | |||||
| 11HY401-100N-PJ | 2.54 | 0.0127 | 5.3Kg | |||||
| 11HY401-100N-PM | 4 | 0.02 | 2.6Kg |
Chopper Driver Full Step/Sec
| Model | Voltage V | Current mA | Leads mm | Rseolution mm | Thrust @100pps | Resistance Ω | Inductance mH | Length mm |
| 11HY105-T100-PB | 5 | 0.42 | 0.635 | 0.003048 | 8.2Kg | 11.9 | 5 | 33.5 |
| 11HY105-T100-PE | 1.27 | 0.005 | 6.3Kg | |||||
| 11HY105-T100-PJ | 2.54 | 0.006096 | 3.0Kg | |||||
| 11HY105-T100-PM | 4 | 0.02 | 1.6Kg | |||||
| 11HY302-T100-PB | 5 | 0.75 | 0.635 | 0.003048 | 12.1Kg | 6.7 | 3 | 45 |
| 11HY302-T100-PE | 1.27 | 0.005 | 9.2Kg | |||||
| 11HY302-T100-PJ | 2.54 | 0.006096 | 4.2Kg | |||||
| 11HY302-T100-PM | 4 | 0.02 | 2.2Kg |
Chopper Driver Full Step/Sec
| 行程 H | 尺寸 “A” | 尺寸“B” | 机身“L” | | | | | | | | | | | | 行程 H | 尺寸 “A” | 尺寸 “A” | 机身“L” |
| 12.7 | 20.65 | 1.5 | 33.5 | 12.7 | 14.7 | —— | 45 | |
| 19.05 | 21.05 | 7.8 | 19.05 | 21.05 | —— | |||
| 25.4 | 27.4 | 14.15 | 25.4 | 27.4 | 5.1 | |||
| 31.75 | 33.75 | 20.5 | 31.75 | 33.75 | 11.45 | |||
| 38.1 | 40.1 | 26.85 | 38.1 | 40.1 | 17.8 |
| Model | Voltage V | Current mA | Leads mm | Rseolution mm | Thrust @100pps | Resistance Ω | Inductance mH | Length mm |
| 11HY105-D**-PB | 5 | 0.42 | 0.635 | 0.003175 | 8.2Kg | 11.9 | 5 | 33.5 |
| 11HY105-D**-PE | 1.27 | 0.00635 | 6.3Kg | |||||
| 11HY105-D**-PJ | 2.54 | 0.0127 | 3.0Kg | |||||
| 11HY105-D**-PM | 4 | 0.02 | 1.6Kg | |||||
| 11HY302-D**-PB | 5 | 0.75 | 0.635 | 0.003175 | 12.1Kg | 6.7 | 3 | 45 |
| 11HY302-D**-PE | 1.27 | 0.00635 | 9.2Kg | |||||
| 11HY302-D**-PJ | 2.54 | 0.0127 | 4.2Kg | |||||
| 11HY302-D**-PM | 4 | 0.02 | 2.2Kg |
Chopper Driver Full Step/Sec
* Customization is available, Please contact us if you can't find what you are looking for.
